Home > Products > LED EX Platform Light

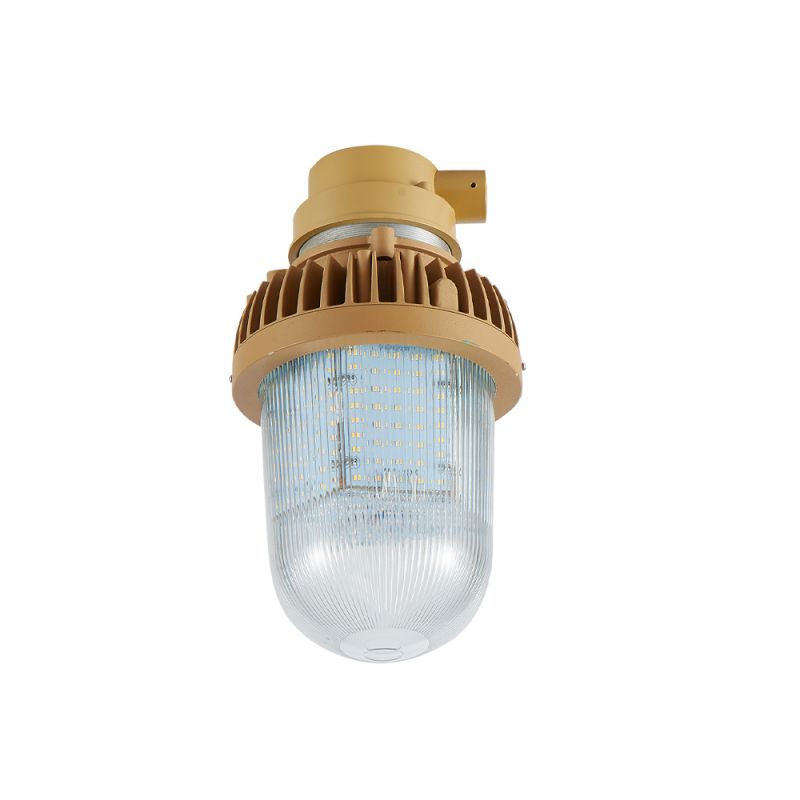

NEW-FBP 30W
Feature
Specification
Model: NEW FBG 30W
Rated voltage: AC 90-265V
Surge: ----
Rated frequency: 50-60Hz
Power factor: ≥0.96
Rated power: 30W
Rated luminous flux: >3300 lm
Luminous efficiency: 110-130 lm/W
LED light source: ----
LED operating voltage: DC30-42V
Color temperature: 2700-3500K,3500-5000K,5000-6500K
Ra: Ra≥85
Working temperature: -30℃-+45℃
IP: 65
Life: >50000 hours
Weight: 2.9kg
Light size: 19*19*19cm
Packing size: 40*40*21cm
Dimension

Installation
Application

Body

Body in die-cast copper-free aluminum alloy, treated byelectrostatic spraying,with good performance of high temperature resistance and climate resistance. tempered glass with good transmittancy,

Driver

Isolation Class I, Protection: OPP/OVP/SCP/OTP

Wide input voltage 90-265vac, bulit-in active PFC>0.96

THD< 15%, Surge Protection 10KV/6KV/4K

Sources:

LED light source with different possibilities of temperature color (standard Natural White 4000K

executions on request also with 3000K, 6000K). High coefficient of performance chromatic CRI≥85.

lifespan>50,000hrs
