Home > Products > LED EX Platform Light

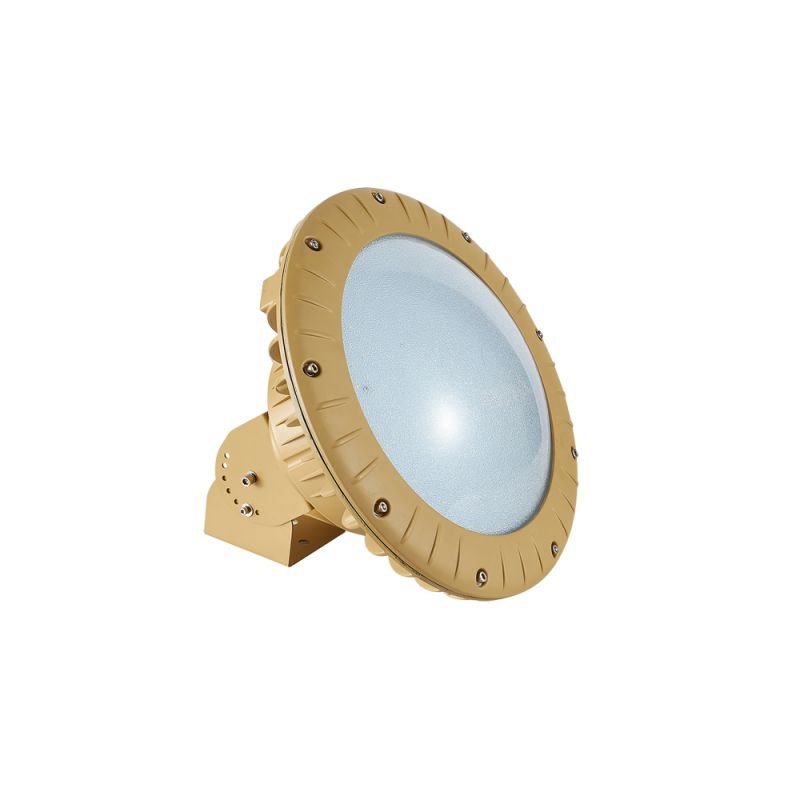

NEW-FBP 180W-200W
Feature

Body
Body in die-cast copper-free aluminum alloy, treated byelectrostatic spraying,with good performance of high temperature resistance and climate resistance. tempered glass with good transmittancy,

Driver
Isolation Class I, Protection: OPP/OVP/SCP/OTP
Wide input voltage 90-265vac, bulit-in active PFC>0.96
THD< 15%, Surge Protection 10KV/6KV/4K


Sources:

LED light source with different possibilities of temperature color (standard Natural White 4000K
executions on request also with 3000K, 6000K). High coefficient of performance chromatic CRI≥85.

lifespan>50,000hrs


Application:
Ideal to be used in the oilfield, chemical industry, steel industry, power, port, Petroleum etc.Harsh environment. moist area
Zone 1. Zone2
Gas explosive environment: Group ⅡA ⅡB ⅡC
Temperature class: T5 to T6

Specification
Model: NEW FBG 180W 200W
Rated voltage: AC 90-265V
Surge: ----
Rated frequency: 50/60HZ
Power factor: ----
Rated power: 180-200W
Rated luminous flux: 1800W>19800 lm, 200W>22000 lm
Luminous efficiency: 110-130lm/W
LED light source: ----
LED operating voltage: DC30-42V
Color temperature: 2700-3500 k,3500-5000k,5000-6500k
Ra: Ra≥85
Working temperature: -30℃-+45℃
IP: 65
Life: >50000 hours
Weight: 8.2KG
Light size: 39*39*28CM
Packing size: 39*39*28CM
Dimension

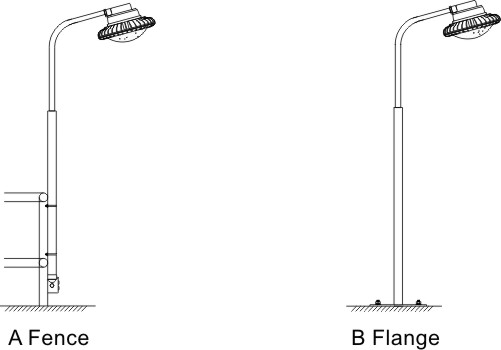

Installation
Application

Ideal to be used in the oilfield, chemical industry, steel industry, power, port, Petroleum etc.Harsh environment. moist area

Zone 1. Zone2

Gas explosive environment: Group ⅡA ⅡB ⅡC

Temperature class: T5 to T6
