NEW-FBG D60W

Feature

Body
Body in die-cast copper-free aluminum alloy, treated byelectrostatic spraying,with good performance of high temperature resistance and climate resistance. tempered glass with good transmittancy,

Driver
Isolation Class I, Protection: OPP/OVP/SCP/OTP
Wide input voltage 90-265vac, bulit-in active PFC>0.96
THD< 15%, Surge Protection 10KV/6KV/4K

Sources：

LED light source with different possibilities of temperature color (standard Natural White 4000K
executions on request also with 3000K, 6000K). High coefficient of performance chromatic CRI≥85.

lifespan>50,000hrs

Application:
Ideal to be used in the oilfield, chemical industry, steel industry, power, port, Petroleum etc.Harsh environment. moist area
Zone 1. Zone2
Gas explosive environment: Group ⅡA ⅡB ⅡC
Temperature class: T5 to T6

▼

Inquire Online

Specification Dimension & Installation Application 3D Virtual Display Related Product Download

Specification

Model:	NEW FBG D60W
Rated voltage:	AC 90-265V
Surge:	----
Rated frequency:	50/60HZ
Power factor:	----
Rated power:	60W
Rated luminous flux:	60W>6600 lm
Luminous efficiency:	110-130lm/W
LED light source:	----
LED operating voltage:	DC30-42V
Color temperature:	2700-3500 k,3500-5000k,5000-6500k
Ra:	Ra≥85
Working temperature:	-30℃-+45℃
IP:	65
Life:	>50000 hours
Weight:	5.3KG
Light size:	191934cm
Packing size:	404042cm

Dimension

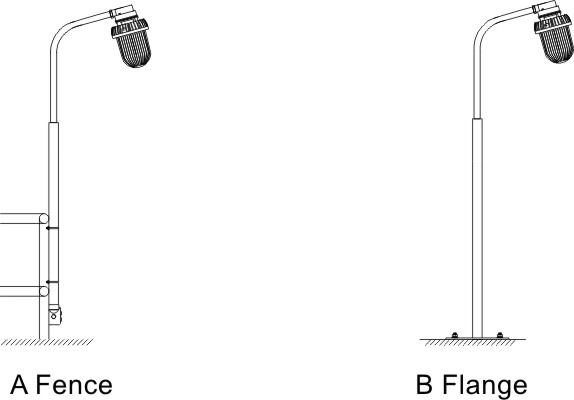

Installation

Application

Ideal to be used in the oilfield, chemical industry, steel industry, power, port, Petroleum etc.Harsh environment. moist area

Zone 1. Zone2

Gas explosive environment: Group ⅡA ⅡB ⅡC

Temperature class: T5 to T6
