Home > Products > LED EX Fluorescent Lamp

NEW-FBY 1X9W,1X10W,1X18W,1X20W
Feature

Aluminium alloy Enclosure, high voltage electrostatic Powder coated after shot blasted.High strength toughened dlass cover. BPY easy mantenance Explosion proof LED lamp .Exposed fasteners are of stainless steel with function of high corrosion-proof.

With grids to adjust lighing effect and reduce the glare.

Modular plug structure design, only need dusconnect end cover draw out core to change tubes.
For fitting with emergency unit, it will automaticaly turn to emergency lighting when power circuit failed.
Inside the emergency unit designed with over charging and over discharging protection circuit
Screw connection type, for easy installation and maintenance.
Power factor can be over 0.95
Steel conduit or cable wiring.
Specification
Model: NEW FBY 006 1X9W,1X10W,1X18W,1X20W
Rated voltage: AC 90-265V
Surge: ----
Rated frequency: 50/60HZ
Power factor: ----
Rated power: 1X9W,lX10W,1X18W,1X20W
Rated luminous flux: >810lm,>900lm,>1620lm,>1800lm
Luminous efficiency: ----
LED light source: ----
LED operating voltage: DC30-42V
Color temperature: 3000K-6000K
Ra: Ra≥85
Working temperature: -30℃-+45℃
IP: 65
Life: >50000 hours
Weight: ----
Light size: ----
Packing size: ----
Dimension

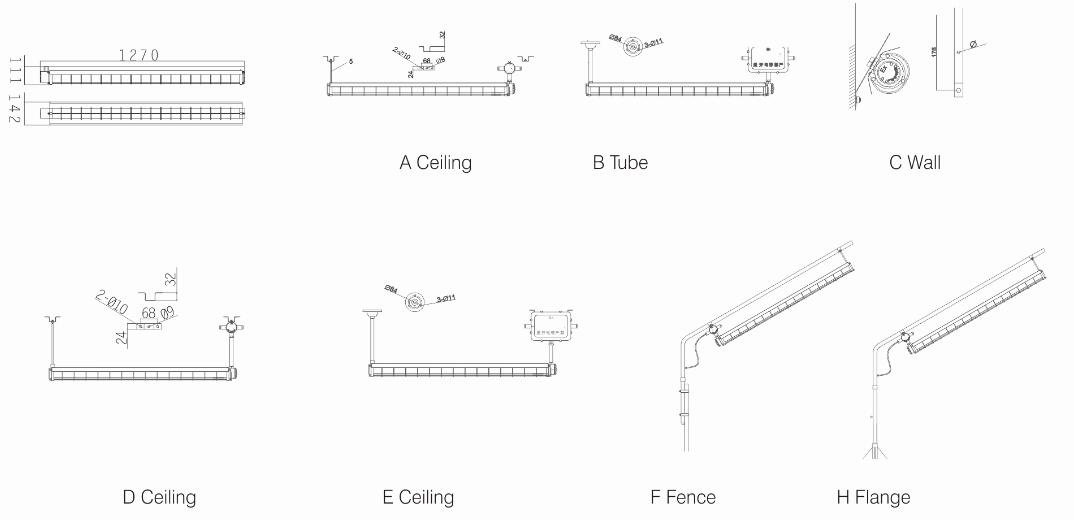

Installation
Application

广泛用于潮湿,防护要求较高,含腐蚀爆炸性气体以及非导电性粉尘的工业场所
