Home > Products > LED Tri-proof Light

NEW-SF 180W-200W
Feature
Body

Body in die-cast aluminum alloy, treated by electrostatic spraying, with good performance of high temperature resistance and climate resistance


Driver
Isolation Class I, Protection: OPP/OVP/SCP/OTP ,Wide input voltage 90-265vac built-in Active PFC>0.95, THD<15%, Surge Protection: 10KV/6KV/4KV


Sources
LED light source (OSRAM/PHILIPS3030) with different possibilities of temperature color (standard Natural White 4000K, executions on request also with 3000K, 6000K).High coefficient of performance chromatic CRI≥85. lifespan>50, 000hrs, Optical  PC cover, strong impact ability and high transparency.


Application

Factory, warehouse, Corridors, substations, ports,industrial buildings, squares, packing lot,oil refining,chemical, military, vessel


Specification
Model: NEW SF 180W-200W
Rated voltage: AC 90-240V
Surge: ----
Rated frequency: 50/60Hz
Power factor: >0.96
Rated power: C180W、C200W
Rated luminous flux: >19800lm,>22000lm
Luminous efficiency: 110-130lm/W
LED light source: Epistar 2835
LED operating voltage: DC30-42V
Color temperature: 2700-3500K,3500-5000k,5000-6500k
Ra: Ra≥85
Working temperature: -30℃-+45℃
IP: 65
Life: >50000 hours
Weight: 6.1kg
Light size: 36*36*25cm
Packing size: 38*37*27cm
Dimension

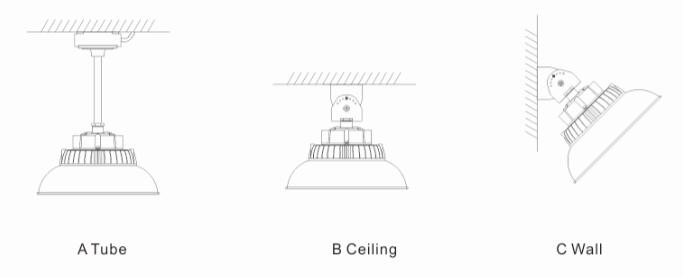

Installation
Application

Factory, warehouse, Corridors, substations, ports,

industrial buildings, squares, packing lot,oil refining,

chemical, military,
