Home > Products > LED Tri-proof Light

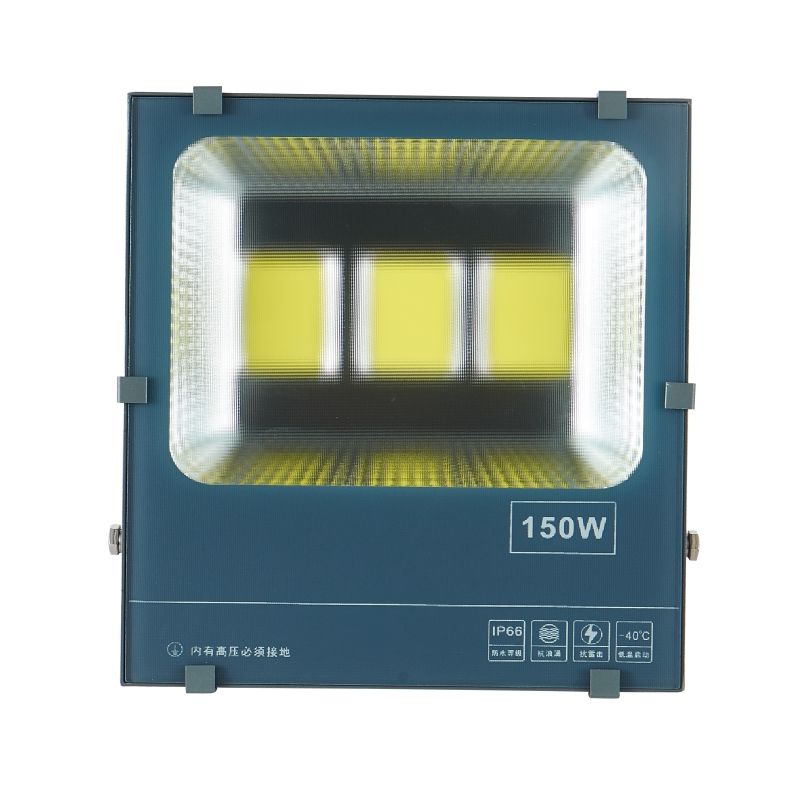

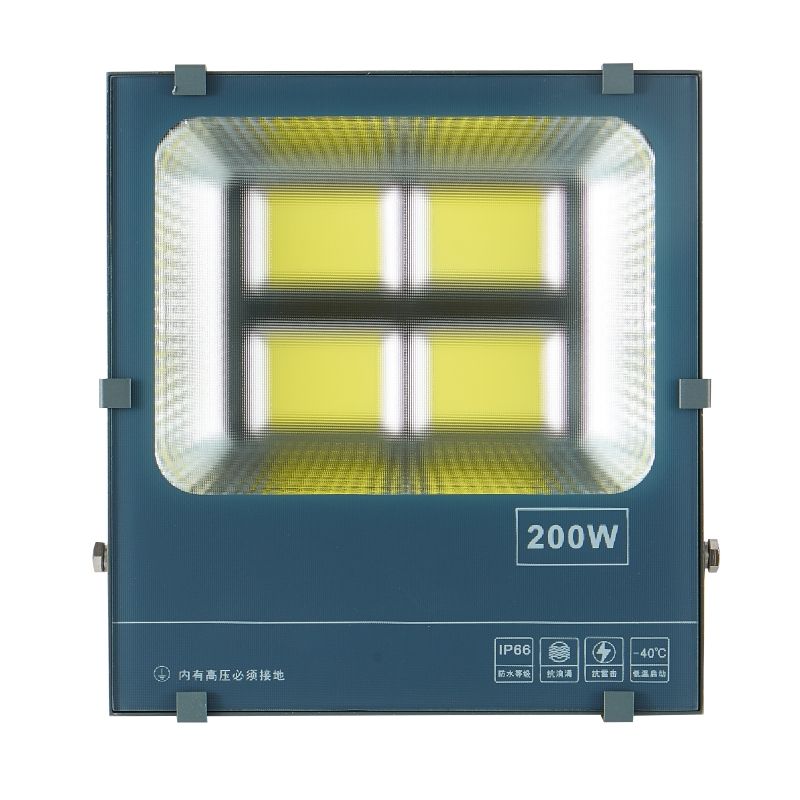

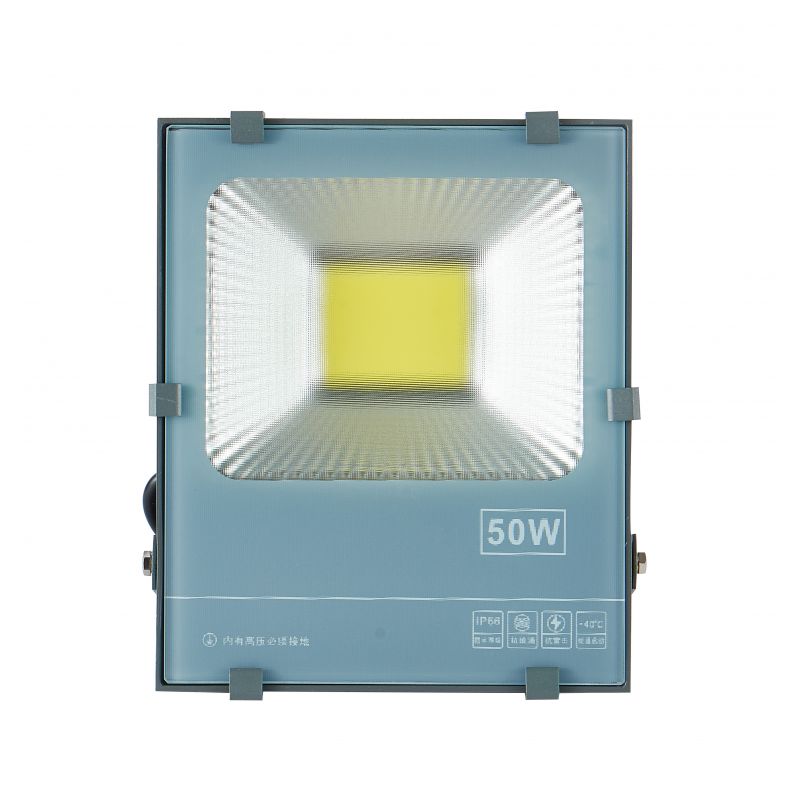

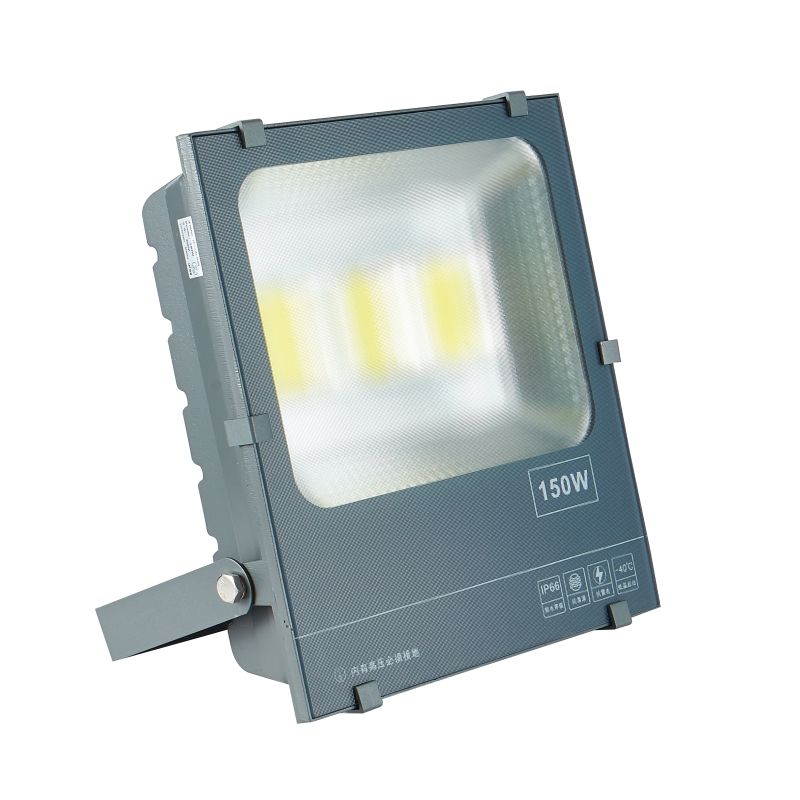

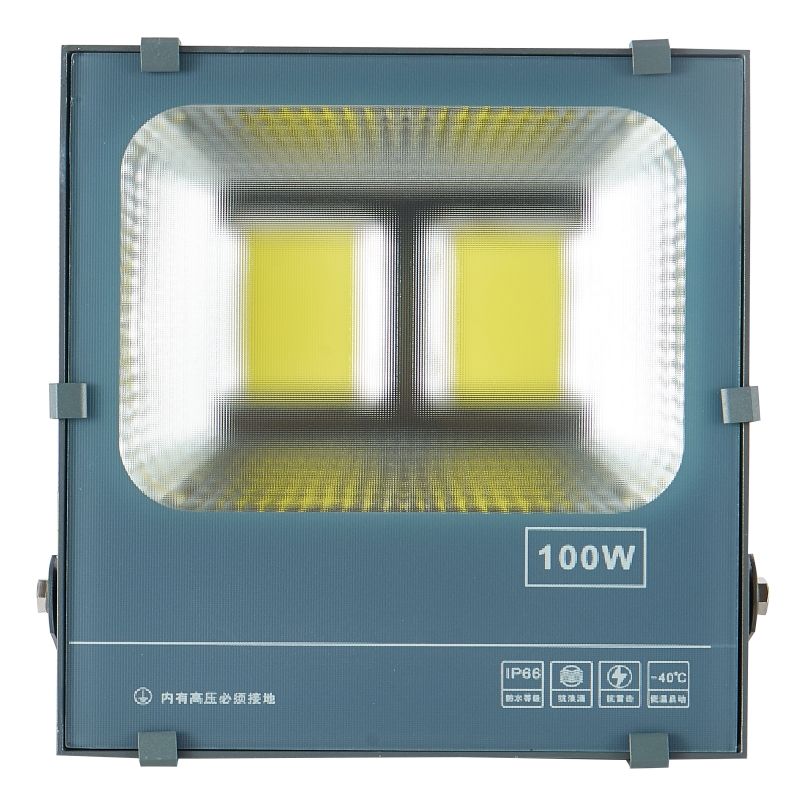

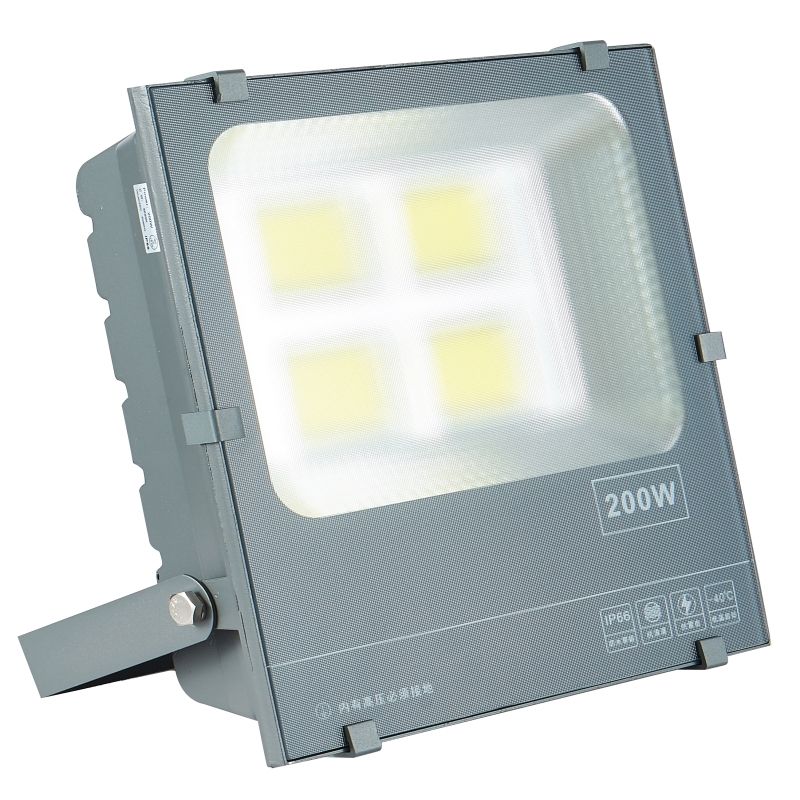

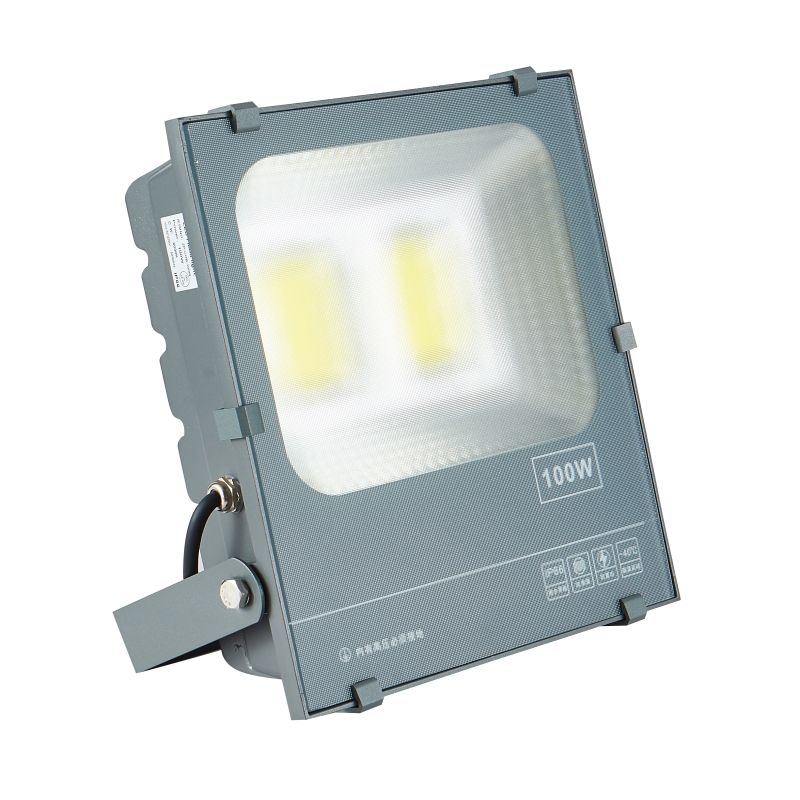

NEW-TG 50W-200W
Feature
灯体

采用无铜压铸铝合金外壳表面静电喷涂处理具有良好的耐高温、耐腐蚀性


电源
绝缘等级,防护:OPP/OVP/SCP/OTP,宽压输入90-265V,内置有效功率因数>0.96,THD<15%,浪涌保护10KV/6KV/4KV。


光源
可选不同色温的LED光源。高显色指数CRI≥85,光源寿命>50.000小时。PC透光罩抗沖击性强,透光率高。


适用范围

工厂、仓库、走廊、变电站、港口、工业建筑、广场、包装厂、炼油、化工、军工、船舶等


Specification
Model: NEW SF 50W-200W
Rated voltage: AC 90-240V
Surge: ----
Rated frequency: 50/60Hz
Power factor: >0.96
Rated power: T50W、T200W
Rated luminous flux: 50W>5500lm,100W>11000lm,150W>16500lm,200W>22000lm
Luminous efficiency: 110-130lm/W
LED light source: COB50-200W
LED operating voltage: DC30-42V
Color temperature: 2700-3500K,3500-5000k,5000-6500k
Ra: Ra≥85
Working temperature: -30℃-+45℃
IP: 65
Life: >50000个小时
Weight: 1.2KG(50W)/2.2KG(100W)/3.9KG(150W)/4.6KG(200W)
Light size: 290*220*70(50W)/330*270*85(100W)/410*340*120(150W)/410*340*120(200W)
Packing size: 610*470*310(50W,8支/箱)/570*300*290(100W,4支/箱)/710*410*270(150W,2支/箱)/710*410*270(200W,2支/箱)

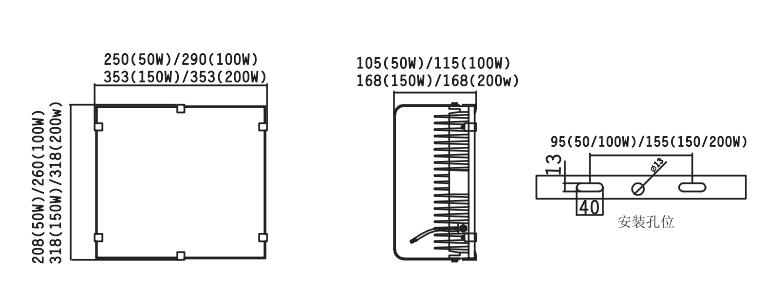

Dimension

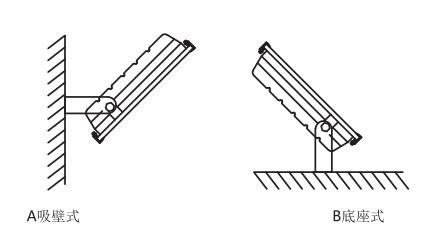

Installation
Application

工厂、仓库、走廊、变电站、港口、工业建筑、广场、包装厂、炼油、化工、军工、船舶等
