NEW-FBP X50 X60W
Feature
Lamp body
The shell is made of national standard aluminum alloy casting, with high purity, fast heat conduction and high explosion-proof performance.
The air duct type heat dissipation structure has lower temperature rise, which can prolong the service life of the lamp while ensuring safety.
The lampshade is embossed with tempered glass, which has good anti-glare performance, heat resistance and shock resistance.
The lamp connector is made of stainless steel, and the surface is sprayed with polyester powder, which has strong corrosion resistance.

light source
Using first-class brand lamp beads, high luminous efficiency, high color rendering index, long life, and a variety of color temperature options. The light source cavity adopts sealing technology to ensure that the heat source is isolated from the explosion source.

power supply
Insulation class l, 90-265V wide voltage input, high power factor, harmonics (TCD) less than 10%; OPP/OVP//SCP/OTP multiple protection and 10KV/6KV/4KV surge protection. The power cavity adopts encapsulation technology,
To ensure that the heat source is isolated from the explosion source, an intelligent dimming power supply is optional, and an intelligent dimming system is equipped to realize intelligent control.
Specification
Model: NEW-FBP X50 X60W
Rated voltage: AC90-265V
Rated frequency: 50/60Hz
Power factor: ≥0.96
Rated power: X50 X60W
Rated luminous flux: >5500lm,>6600lm
Luminous efficiency: 110-130lm/W
LED operating voltage: DC30-42V
Color temperature: 2700-3500K,3500K-5000K,5000-6500K
Ra: Ra≥85
Working temperature: -30℃~+45℃
IP: IP65
Life: >50000 hours
Weight: 5.35kg
Light size: 25*25*25cm
Packing size: 52*26*27cm

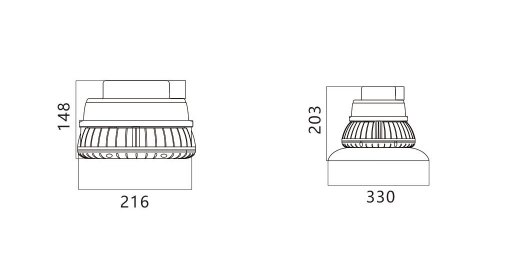

Dimension

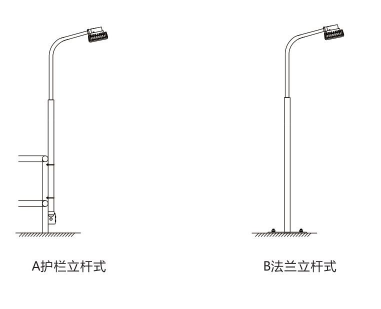

Installation
Application

It is widely applicable to IIA, IIB, IIC, and the temperature group is T6 in zone 1, 2 containing corrosion

In the environment of non-toxic, flammable, explosive gas or non-conductive dust. For example, high protection requirements

High-risk places such as oil exploration, refining, storage, chemical industry, and power plants.
