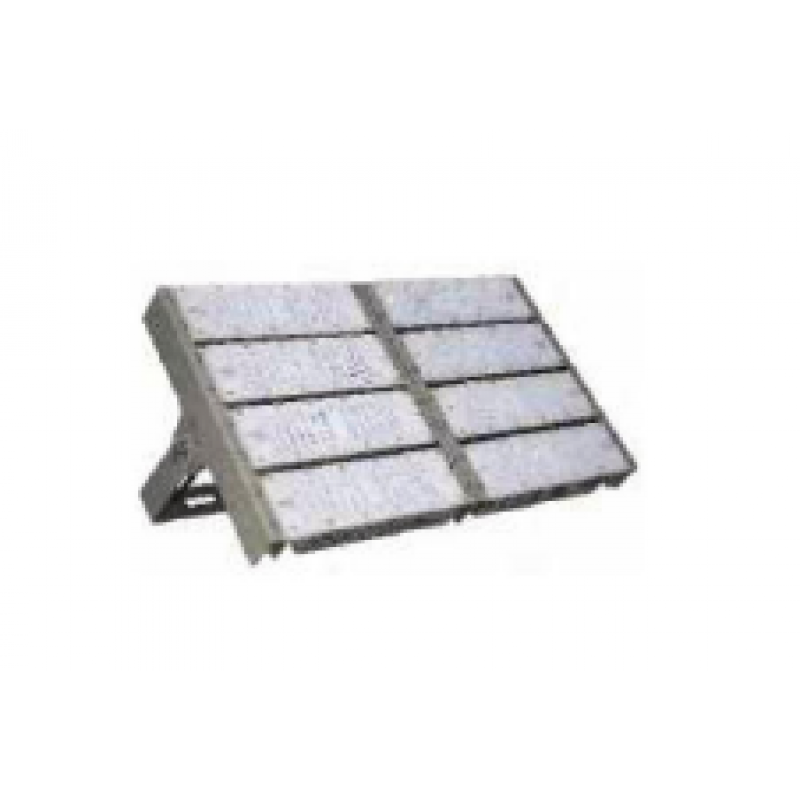

NEW SD 200-400W
Feature
Lamp body
The shell is made of national standard molybdenum alloy casting and has a simple appearance. The modular design can adjust the power of the lamp according to different needs, which is flexible and convenient-the air duct type heat dissipation structure is lower, and it can extend the service life of the lamp while ensuring safety. Using professional optical lens to distribute light. Effective is low light loss and glare, and the illumination is more uniform. The surface of the lamp is sprayed with polyester powder and treated with a special process, which has good antistatic performance, strong self-cleaning power, and effectively prevents dust accumulation. Strong resistance to pea corrosion.


light source
Using first-class spleen lamp beads, high luminous efficiency. High color rendering index, long life, and a variety of color temperature options.


power supply
Insulation class l, 90-265V wide voltage input, high power factor, harmonic (TCD) less than 10%; and OPP/OvP//SCP/OTP multiple protection and 10KV/6KV/4KV surge protection, optional Equipped with intelligent dimming power supply. Equipped with an intelligent dimming system to achieve intelligent control.
Specification
Model: NEW SD 200-400W
Rated voltage: AC90-265V
Rated frequency: 50/60Hz
Power factor: ≥0.96
Rated power: 200-400W
Rated luminous flux: 200W>22000lm,250W>27500lm,300W>33000lm,400W>44000lm,
Luminous efficiency: 110-130lm/W
LED operating voltage: DC30-42V
Color temperature: 2700K-6500K
Ra: Ra≥85
Working temperature: -30℃~+45℃
IP: IP65
Life: >50000 hours
Weight: 5.1KG(200W),6.9KG(250W),7.9KG(300W),10.3KG(400W)
Packing size: 35*31*16CM(200W).43*31*16CM(250W).52*31*16cm(300W),35*62*16cm(400W0
Dimension
Installation
Application

It is widely used in municipal road tunnels, highway tunnels, railway tunnels and other places.
