NEW-FBG 120W 150W

Feature

Body

Body in die-cast copper-free aluminum alloy, treated by electrostatic spraying, with good performance of high temperature resistance and climate resistance.Tempered glass with good transmittancy.

Sources

LED light source (OSRAM/PHILIPS3030) with different possibilities of temperature color (standard Natural White 4000K, executions on request also with 3000K, 6000K).

High coefficient of performance chromatic CRI≥80. lifespan>50,000hrs.

Driver

Isolation Class I, Protection: OPP/OVP/SCP/OTP,Wide input voltage 90-305Vac,Built-in Active PFC>0.95 ,THD<10% ,Surge Protection：6KV/4KV

▼

Inquire Online

Specification Dimension & Installation Application 3D Virtual Display Related Product Download

Specification

Model:	NEW-FB003
Rated voltage:	AC90-265V
Surge:	6KVAC
Rated frequency:	50/60Hz
Power factor:	0.96
Rated power:	120W - 150W
Rated luminous flux:	13200lm - 16500lm
Luminous efficiency:	110-130 lm/W
LED light source:	2835
LED operating voltage:	DC30-42V
Color temperature:	Warm white2700-3500K Naturally white 3500-5000K Is white5000-6500K
Ra:	Ra :85
Working temperature:	-30°C ～+40°C
IP:	IP65
Life:	50000 hours
Weight:	7.1KG
Light size:	343427CM
Packing size:	703529CM (2 in 1)

Dimension

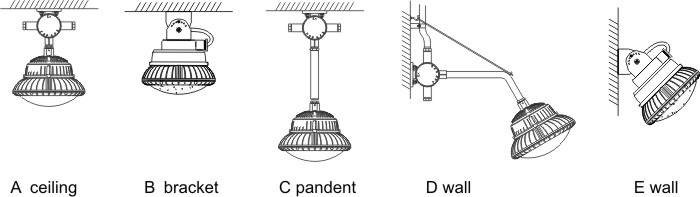

Installation

Application

Ideal to be used in the oilfield, chemical industry, steel industry, power, port, Petroleum etc.Harsh environment. moist area

Zone 1. Zone2

Gas explosive environment: Group ⅡA ⅡB ⅡC

Temperature class: T5 to T6
